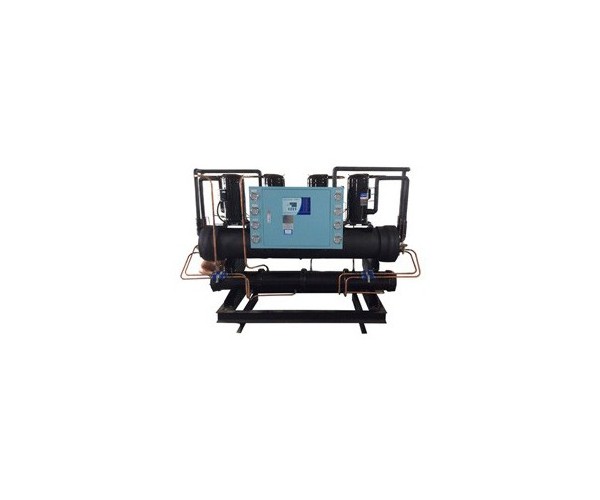

Imported high-quality compressors, pumps and other core components from Japan and Europe and the United States are safe, quiet, power-saving and durable.
The Italian temperature controller can accurately control the water temperature from + 3 to + 45 C.
The design of condenser and radiator is unique, and the heat transfer effect is excellent.
With current overload protection, high and low voltage and electronic time delay and other safety protection devices, when a fault occurs, the alarm will be issued to show the cause of the fault.
Equipped with stainless steel insulation water tank, easy to clean and maintain.
It is equipped with reverse phase underphase protection and anti-icing protection.
This series of chillers can be customized for acid and alkali resistance.
technical parameter
型號 | 單位 | LC-05WO | LC-10WO | LC-15WO | LC-20WO | LC-30WO | LC-40WO | |
制冷量 | Kw | 15 | 30.5 | 45 | 61 | 92 | 122 | |
Kcal/h | 12900 | 26230 | 38700 | 52460 | 79120 | 104920 | ||
壓縮機 | 輸入功率 | Kw | 4.5 | 4.5×2 | 4.5×3 | 9×2 | 9×3 | 9×4 |
額定功率 | Hp | 5 | 5×2 | 5×3 | 10×2 | 10×3 | 10×4 | |
蒸發(fā)器 | 類型 | 盤管式蒸發(fā)器 | 殼管式蒸發(fā)器 | |||||
水管口徑 | lnch | 1 | 2 | 2 | 2-1/2 | 2-1/2 | 3 | |
冷凍媒體 | 類型 | R22 | R22 | R22 | R22 | R22 | R22 | R22 |
填充量 | Kg | 2.5 | 5 | 7.5 | 11 | 12 | 18 | |
水冷冷凝器 | 類型 | 盤管式冷凝器 | ||||||
水管口徑 | Luch | 1 | 1-1/2 | 1-1/2 | 2 | 2-1/2 | 3 | |
冷卻水量 | L/min | 70 | 110 | 170 | 330 | 330 | 480 | |
水箱容量 | Liter | 50 | 70 | 125 | 150 | 150 | 180 | |
水泵 | 功率 | Kw | 0.75 | 1.5 | 2.2 | 4 | 4 | 4 |
hp | 1 | 2 | 3 | 5 | 5 | 5 | ||
流量 | l/min | 60 | 100 | 200 | 400 | 400 | 400 | |
管徑 | 冷水出口 | luch | 1/2×4 | 2 | 2 | 2-1/2 | 2-1/2 | 3 |
冷水回口 | luch | 1/2×4 | 2 | 2 | 2-1/2 | 2-1/2 | 3 | |
外形尺寸 | 水冷 | cm | 97×56×97 | 158×75×139 | 204×80×149 | 210×85×151 | 224×88×151 | 265×95×160 |
風冷 | cm | 125×68×113 | 182×92×181 | 195×105×181 | 230×128×200 | 240×138×200 | 320×148×210 | |
